SWIVEL RRStandard Reinforced
A 50mm diameter reinforcement plate is attached to the back of the Standard Swivel plate for improved stability.
Ideal for chairs up to 600mm wide.
| Function | Free swivel |
|---|---|
| Range of Motion | 360° |

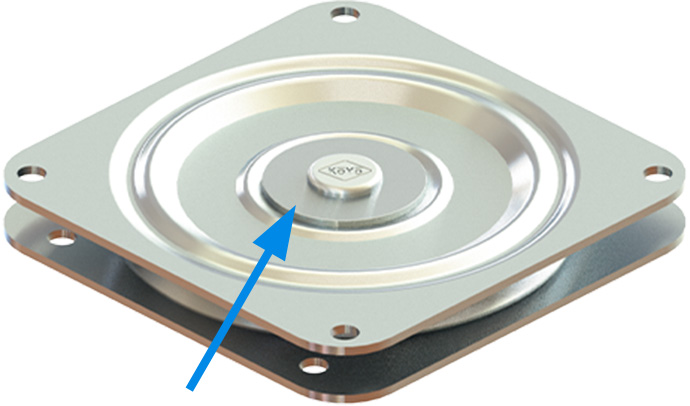

There is a reinforcement plate on the back.
Features of SWIVEL RR
Through our special processing, we have achieved a high quality and smooth silent rotation.
KOYO swivels are used for dining chairs, massage chairs and single-seater sofas.
The durability and reliability are far beyond any other swivels.
-
Durability Test

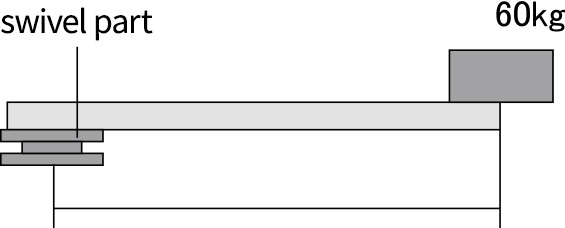

Eccentric Load TestLoading 60 kg weight at the point of 300mm or 250mm from the center of a swivel, and rotate 38rpm.
(250mm)
Swivel Type Rotation/Distance from center SWIVEL RR CLEAR 15,000CYCLES／250mm Vertical Load TestEvaluation of the product applying a 150kg load at the center of the swivel. Result: No abnormal noise during rotation or any other irregularities in any of the turntables.
-
Recommended width of chair
Swivel Type Swivel Type SWIVEL RR 600mm

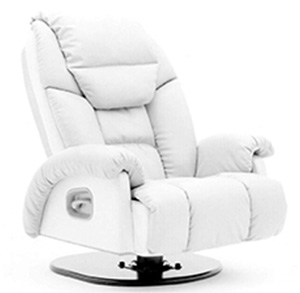

Massage chair
Dining chair
