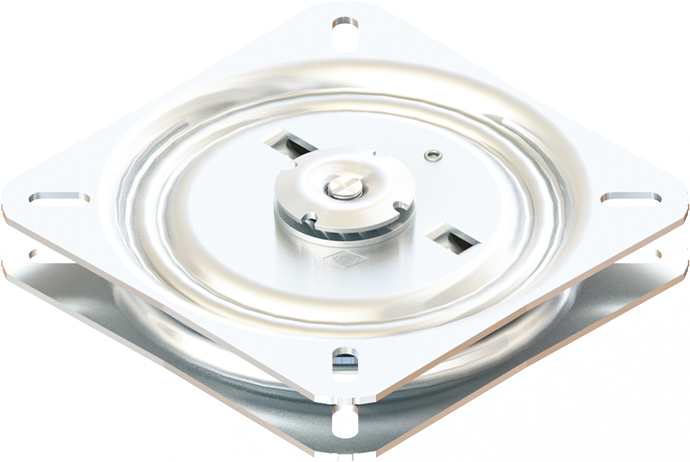

SWL-ARAuto-return

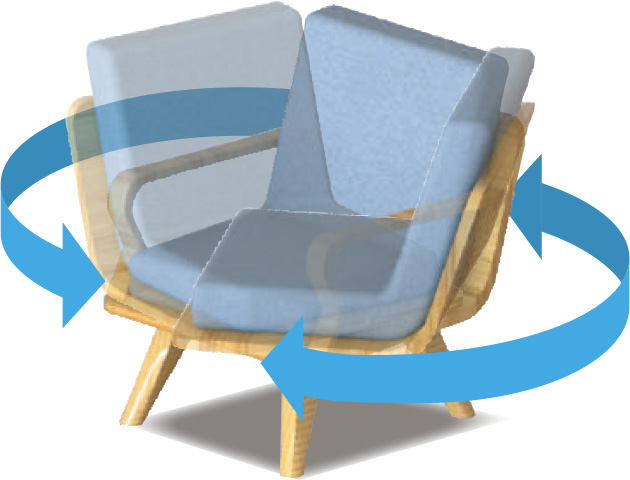

The spring's force enables the auto-return mechanism, bringing the chair back to its original position.
・Eliminates the need to manually adjust the chairʼs direction.
・Maintains a neat and tidy appearance at all times.
| Function | Free swivel |
|---|---|
| Range of Motion | 180° (left and right 90°each) |
Features of SWL-AR
Through our special processing, we have achieved a high quality and smooth silent rotation.
KOYO swivels are used for dining chairs, massage chairs and single-seater sofas.
The durability and reliability are far beyond any other swivels.
-
Durability Test
Eccentric Load TestLoading 60 kg weight at the point of 300mm or 250mm from the center of a swivel, and rotate 38rpm.
(300mm)
Swivel Type Rotation/Distance from center SWL-AR CLEAR 15,000CYCLES／300mm Vertical Load TestEvaluation of the product applying a 150kg load at the center of the swivel. Result: No abnormal noise during rotation or any other irregularities in any of the turntables.
-
Recommended width of chair
Swivel Type Swivel Type SWL-AR 800mm
Massage chair
Dining chair
