KOYO Corporation

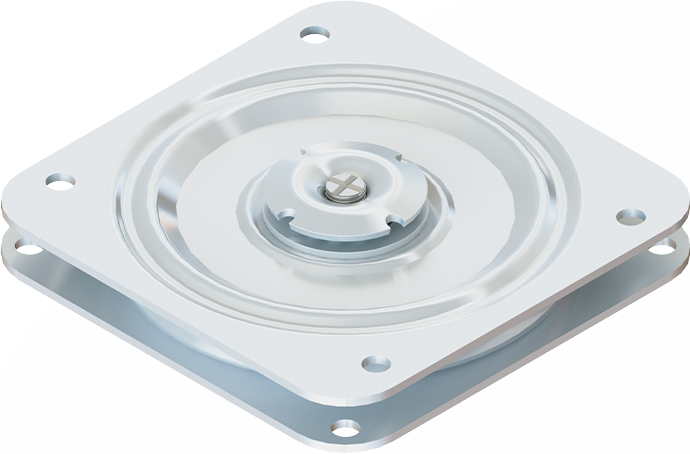

Features of SWIVEL STD

Through our special processing, we have achieved a high quality and smooth silent rotation.
KOYO swivels are used for dining chairs, massage chairs and single-seater sofas.
The durability and reliability are far beyond any other swivels.

• Durability Test

  Eccentric Load Test

  Loading 60 kg weight at the point of 300mm or 250mm from the center of a swivel, and rotate 38rpm.

  (250mm)

  Swivel Type	Rotation/Distance from center
  SWIVEL STD	CLEAR 10,000CYCLES／250mm

  Vertical Load Test

  Evaluation of the product applying a 150kg load at the center of the swivel. Result: No abnormal noise during rotation or any other irregularities in any of the turntables.

• Recommended width of chair

  Swivel Type	Swivel Type
  SWIVEL STD	500mm

  Massage chair

  Dining chair
