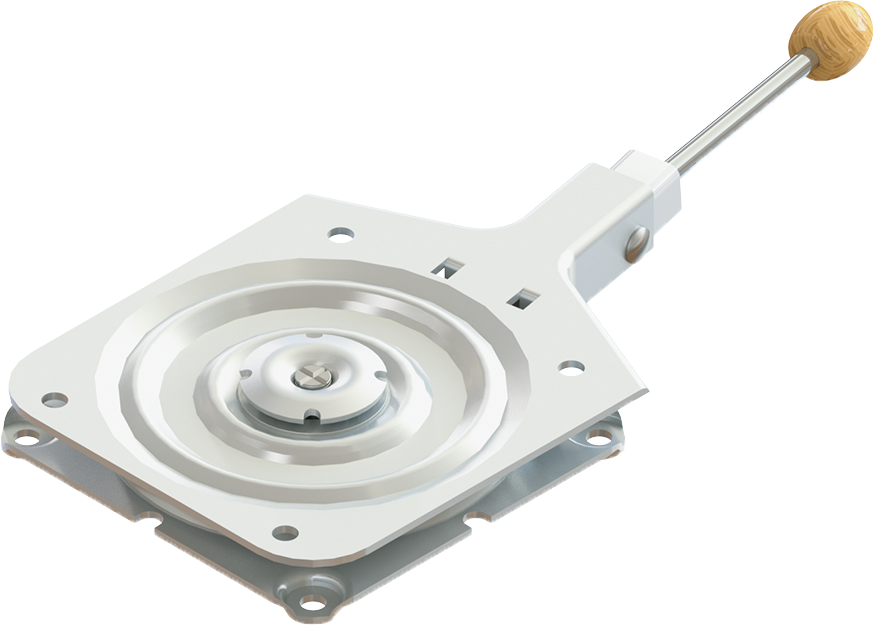

SWL-COMBOCombo
A swivel fixed at each 90°interval with free rotation.
| Function | Swivel lock or free swivel by lever operation. |
|---|---|
| Range of Motion | locked at every 90°pitch + free swivel |

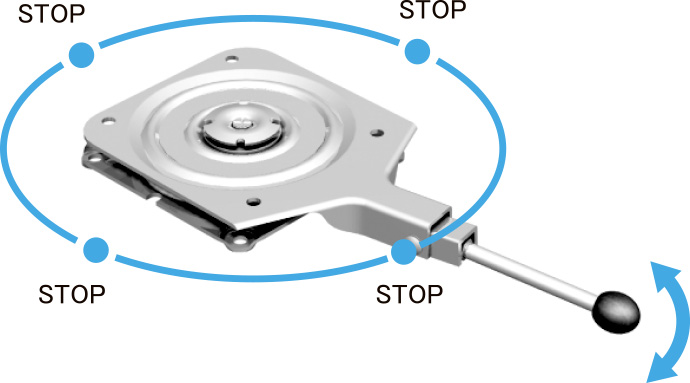

4 locking positions, each 90° apart

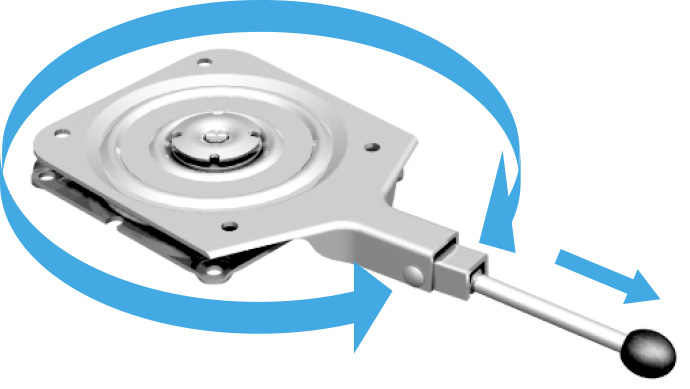

Pulling the lever allows for free swivel
Lever's operating method:
-
Swivel lock

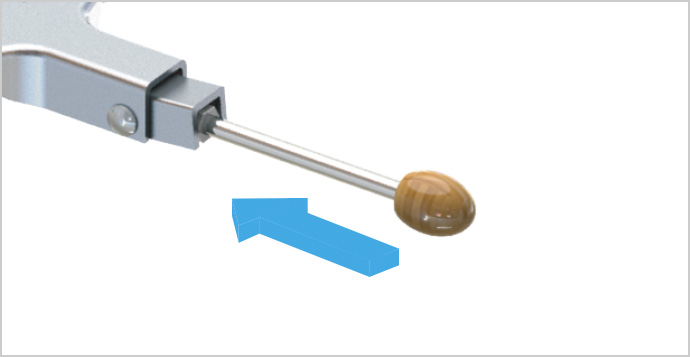

Push the lever for swivel lock -
Free swivel

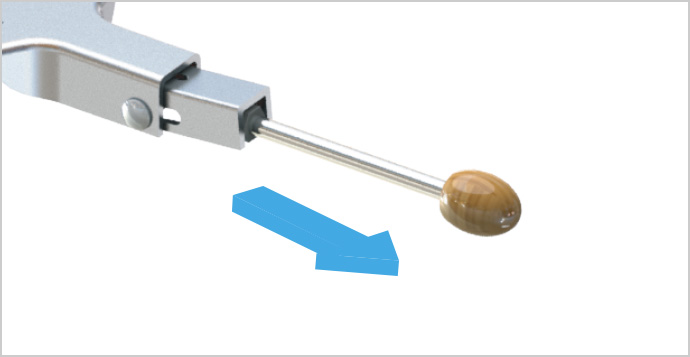

Pull the lever for free swivel
Features of SWL-COMBO
Through our special processing, we have achieved a high quality and smooth silent rotation.
KOYO swivels are used for dining chairs, massage chairs and single-seater sofas.
The durability and reliability are far beyond any other swivels.
-
Durability Test
Eccentric Load TestLoading 60 kg weight at the point of 300mm or 250mm from the center of a swivel, and rotate 38rpm.
(250mm)
Swivel Type Rotation/Distance from center SWL-COMBO CLEAR 15,000CYCLES／250mm Vertical Load TestEvaluation of the product applying a 150kg load at the center of the swivel. Result: No abnormal noise during rotation or any other irregularities in any of the turntables.
-
Recommended width of chair
Swivel Type Swivel Type SWL-COMBO 600mm
Massage chair
Dining chair
