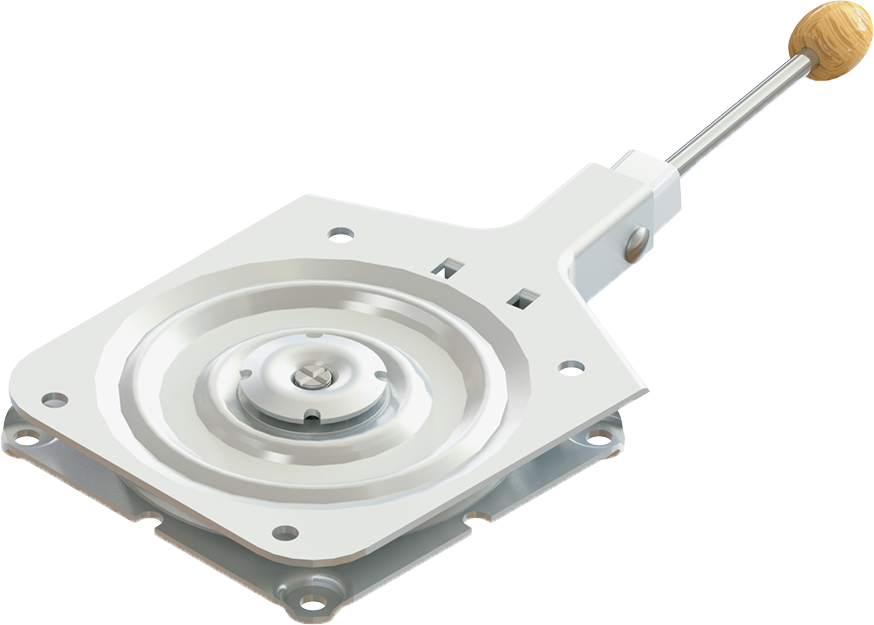

SWL-LEVER STOPLever Stop
A swivel that can be locked every 90° with lever operation.
| Function | swivel locked using lever operation |
|---|---|
| Range of Motion | locked at every 90°pitch |

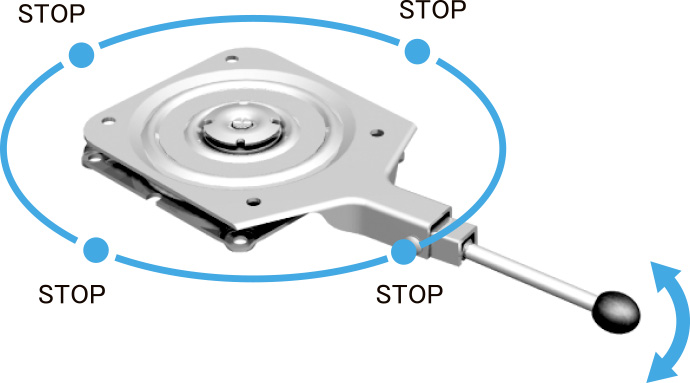

4 locking positions, each 90° apart
Features of SWL-Lever Stop
Through our special processing, we have achieved a high quality and smooth silent rotation.
KOYO swivels are used for dining chairs, massage chairs and single-seater sofas.
The durability and reliability are far beyond any other swivels.
-
Durability Test
Eccentric Load TestLoading 60 kg weight at the point of 300mm or 250mm from the center of a swivel, and rotate 38rpm.
(250mm)
Swivel Type Rotation/Distance from center SWL-Lever Stop CLEAR 15,000CYCLES／250mm Vertical Load TestEvaluation of the product applying a 150kg load at the center of the swivel. Result: No abnormal noise during rotation or any other irregularities in any of the turntables.
-
Recommended width of chair
Swivel Type Swivel Type SWL-Lever Stop 600mm
Massage chair
Dining chair
