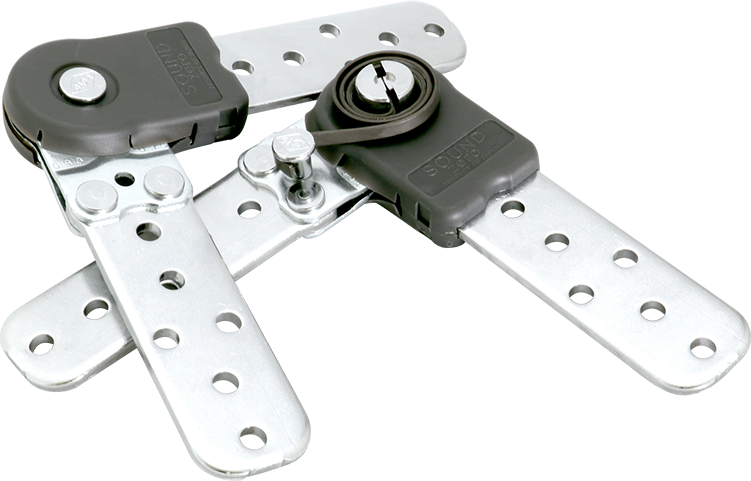

ST250 Gear


  • PITCH

Sound Zero Gear realized the smooth movement like no step that has no sound and micro pitch of 2 degrees per step.

Strength 220N·m

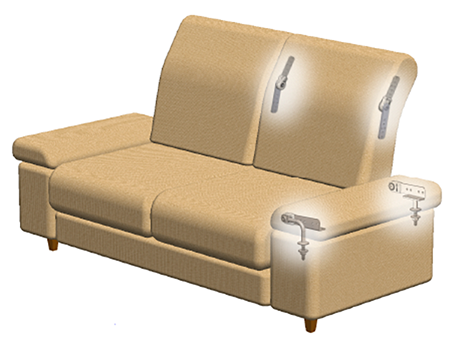

Application Head Rest·Arm Rest
Pitch 2° Pitch

Quality

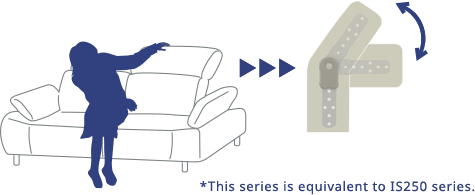

  • Silent Gear

    Because there is no sound
    by moving the gear,
    this gear is suitable for
    places such as living rooms,
    theaters, libraries and so on.

  • Micro Pitch of 2°per step

    With micro pitch
    2°per step,
    fine adjustments
    are realized.

  • Repetition is more than
    10,000 cycles.

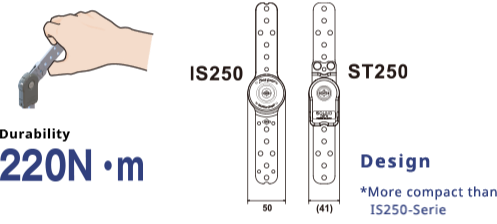

  • Powerful & Stylish

Action Pattern

30° Movable Range
  • ST250-30-90
  • ST250-30-132
  • ST250-30-180
72° Movable Range
  • ST250-72-90
  • ST250-72-180
42° Movable Range
  • ST250-42-120
90° Movable Range
  • ST250-90-90
  • ST250-90-108
  • ST250-90-180
54° Movable Range
  • ST250-54-90
  • ST250-54-180

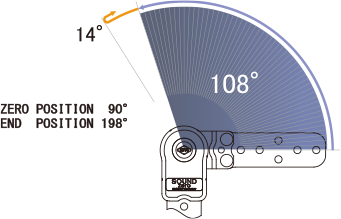

108° Movable Range
  • ST250-108-90
60° Movable Range
  • ST250-60-108

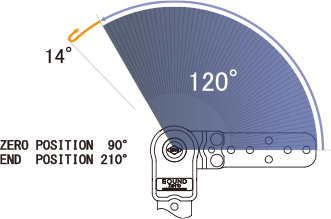

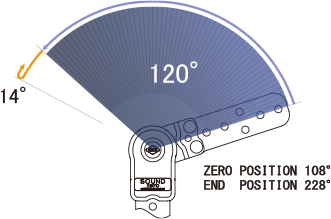

120° Movable Range
  • ST250-120-90
  • ST250-120-108

Lineup

  • Non-spring type

  • spring type
