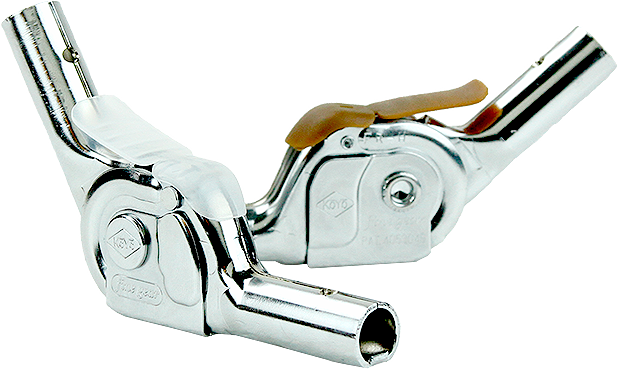

FR Gear


  • PITCH

In addition to super multi-step reclining, FR gear applied a new "free lock" system, which offers easy adjustment in a small space.

Strength 210N·m 260N·m
Application Back Rest
Pitch 2° Pitch

Quality

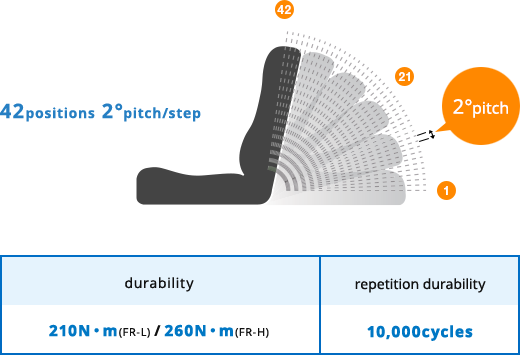

Super Multi-Step Reclining

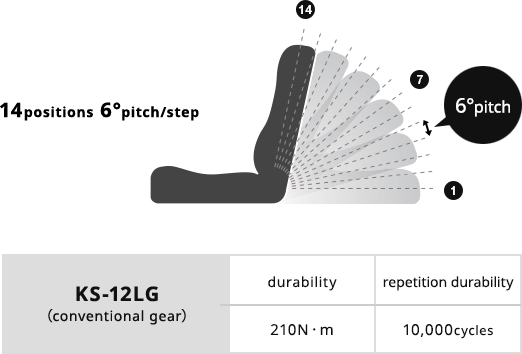

  • Conventional Gear
  • FR Gear
It is so easy to make an adjustment in small space by Free lock system

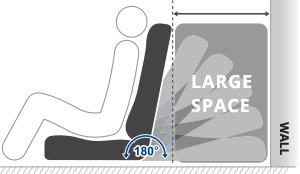

  • Conventional Gear

    A large space
    is required
    To be able to adjust,
    conventional gear needs
    to put it down flat (180°)

  • FR Gear

    Not much
    space required
    Any angles can be locked after
    releasing by free lock system.

HOW TO OPERATE

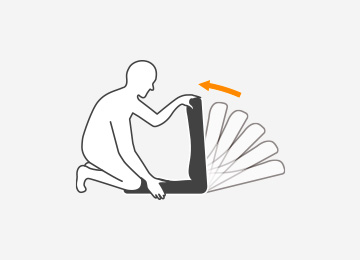

  • Release

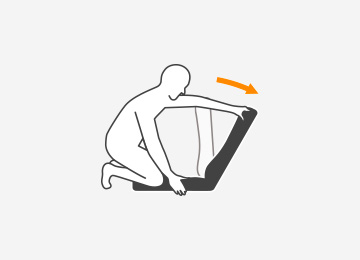

  • Free

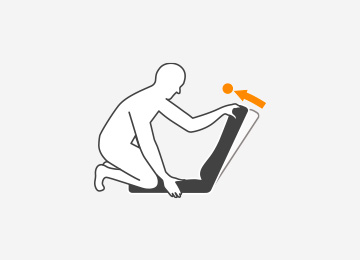

  • Lock

Lineup

  • FR-L

    Durability
    : 210N·m
    Repetition
    Durability
    : 10,000cycles

    Adaptable frame size

  • FR-H

    Durability
    : 260N·m
    Repetition
    Durability
    : 10,000cycles

    Adaptable frame size

    *The actual products are not plated ( raw steel ).

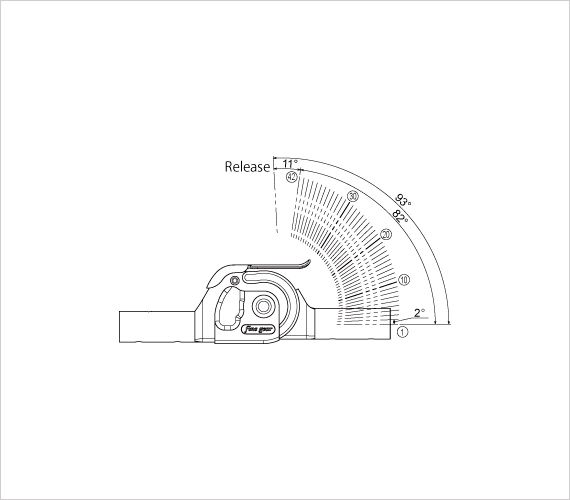

Action Pattern
